Digitrax LocoMotion^® System
Your locomotives look like the real thing. The Digitrax LocoMotion™ System makes them run like the real thing, too!



• Torque Compensation for smooth as silk silent operation.


• 128 Speed Step operation (14 or 28 steps can also be used).


• Momentum with acceleration and deceleration.


• Normal Direction of Travel is user selectable.


• Switching Speed feature for easier and faster access to yard speeds.


• 3 Step Speed Tables set start, mid and max voltage for custom control.


• 28 Step Speed Tables with 256 level resolution for precise control.


• SuperSonic™ motor drive for silent operation.


• FX³ Function outputs for prototypical lighting effects and on/off control.


• Constant Brightness Lighting with directional or independent control.


• Realistic Effects like Ditch lights, Mars lights, strobes, and many more.


• FX³ & Standard Function Qualifiers operate functions based on direction,
  F0 on or off, direction and F0, and whether loco is moving.


• Function Remapping for custom function setup.


• Master Light Switch turns off all lights & functions with one keystroke.


• Decoder Lock equipped

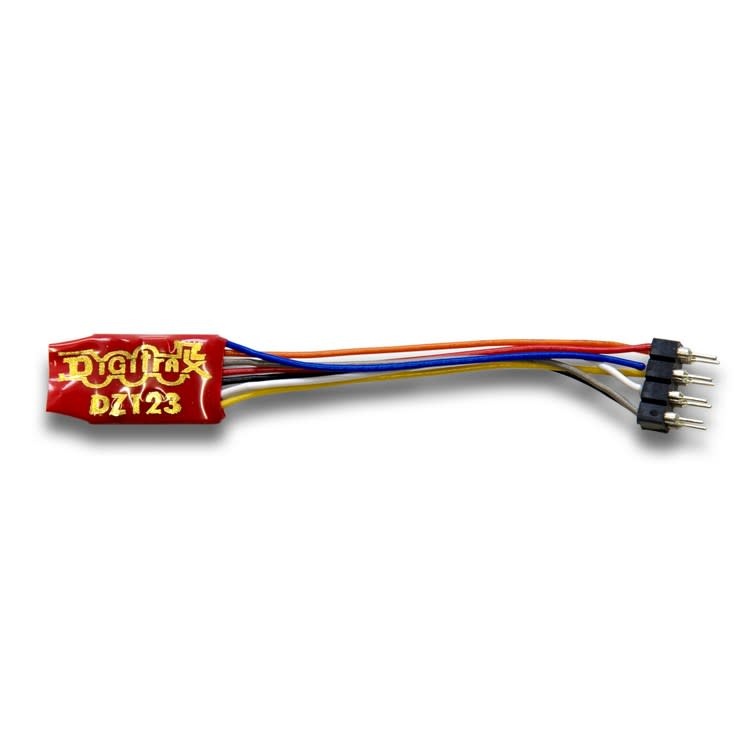

• Current Rating-Motor1.0 Amp (2.0 Amps Peak)Size0.36” x 0.55 x 0.13” (9.8mm x 14.5mm x 3.2mm)InstallationDCC Medium plug on 1.2" (30mm) wire harnessFunction Outputs2-500mAFunction TypeFX3 (read more)FeaturesEconomy Series 3 (read more)WarrantyNo Worries Warranty (read more)
